WPF, XAML: TreeView HierarchicalDataTemplate databinding to unknown XML/DataSource

Problem description

• I wish to bind my TreeView to a datasource.
• The TreeView should build its child nodes dynamically (unknows childs in datasource).
• Each node should display its data or (if no data) its element name.

Solution
You need to use and understand these parts:

1. HierarchicalDataTemplate
1. HierarchicalDataTemplate.Triggers
2. Binding XPath

Usage Example
Just copy paste and start playing / reading each part's help.

XAML

Code Snippet

1. <Window x:Class="TreeViewDataBinding.Window1"
2.     xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
3.     xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
4.     Title="Window1" Height="300" Width="300">
5.     <Window.Resources>
6.         <HierarchicalDataTemplate x:Key="NodeTemplate" >
7.
8.             <TextBlock x:Name="tbName" Text="?" />
9.
10.             <HierarchicalDataTemplate.ItemsSource>
11.                 <Binding XPath="child::node()" />
12.             </HierarchicalDataTemplate.ItemsSource>
13.
14.             <HierarchicalDataTemplate.Triggers>
15.                 <DataTrigger Binding="{Binding Path=NodeType}" Value="Text">
16.                     <Setter TargetName="tbName" Property="Text" Value="{Binding Path=Value}"/>
17.                 </DataTrigger>
18.                 <DataTrigger Binding="{Binding Path=NodeType}" Value="Element">
19.                     <Setter TargetName="tbName" Property="Text" Value="{Binding Path=Name}"/>
20.                 </DataTrigger>
21.             </HierarchicalDataTemplate.Triggers>
22.         </HierarchicalDataTemplate>
23.
24.         <XmlDataProvider x:Key="xmlDataProvider"/>
25.     </Window.Resources>
26.
27.     <StackPanel>
28.         <Button Click="Button_Click">Reload</Button>
29.
30.         <TreeView
31.             ItemsSource="{Binding Source={StaticResource xmlDataProvider}, XPath=*}"
32.             ItemTemplate="{StaticResource NodeTemplate}" />
33.     </StackPanel>
34. </Window>

Code behind

Code Snippet

1. using System.Windows;
2. using System.Windows.Data;
3. using System;
4.
5. namespace TreeViewDataBinding
6. {
7.     public partial class Window1 : Window
8.     {
9.         public Window1()
10.         {
11.             InitializeComponent();
12.         }
13.
14.         private void Button_Click(object sender, RoutedEventArgs e)
15.         {
16.             var provider = (XmlDataProvider)this.Resources["xmlDataProvider"];
17.             provider.Source = new Uri(@"Data\standard.xml", UriKind.Relative);
18.         }
19.     }
20. }

Additional files

• standard.xml testbenach XML file (100MB !!).
• http://www.xml-benchmark.org/downloads.html
• " For your convenience, we provide a ready-made document for a 100 MB experiment."

Performance
I was able to load 100MB of xml data in around ~6 seconds first time, ~4 seconds from the second time.

Testbench station

• i7 (8 cores) @ 2.80GHz
• 4.00GB RAM
• 64-Bit OS, Win7 Pro.

CPU & memory usage

The CPU was at idle when i started, the RAM was at the base line.

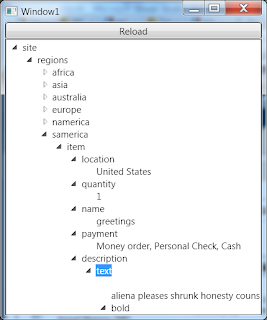

Results

Resources

• http://www.w3schools.com/xpath/xpath_syntax.asp
• http://www.w3schools.com/xpath/xpath_axes.asp
• http://stackoverflow.com/questions/1605062/treeview-bound-to-xmldataprovider-shows-data-in-editor-but-empty-when-run

Hope it helps.
